Home Product Presentation BY-PM700 Pro

- Professional microphone with USB digital output and XLR analog output
- Universal compatibility with Android devices, Windows/Mac computers, analog audio devices
- Selectable Stereo, Omnidirectional, Cardioid and Bidirectional patterns for different scenarios
- 3.5mm headphone jack for latency-free monitoring
- Built-in controls for gain, headphone volume and muting
- 24bit/48kHz audio resolution
- Rugged metal construction
- Durable & detachable desk stand included

Product Introduction

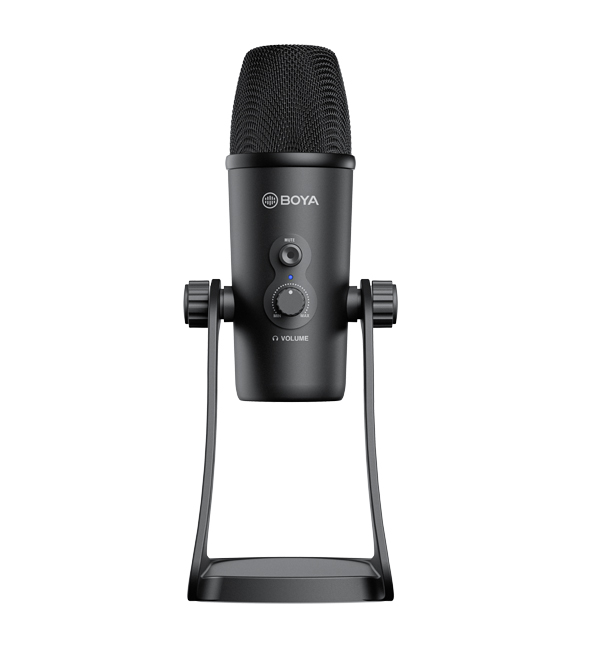

The BOYA BY-PM700 Pro is a desktop microphone with USB digital output and XLR analog output, compatible with Android devices, Windows/Mac computers, and analog audio devices. It provides a perfect audio solution for home studio recording, podcasting, voice over, video conference, and more. XLR & USB Two Output Selections The BY-PM700 Pro offers both XLR and USB-C interfaces, allowing it to be connected with all USB-C devices and analog audio devices. The USB output jack is powered by DC 5V while the XLR output jack is powered by phantom power 12-48V.

BY-PM700 Pro

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

View All

Product Parameters

Specification

Polar Pattern

Stereo, Omnidirectional, Cardioid, Bidirectional

Frequency Response

20-20,000Hz

Sensitivity

-36dB

Power Consumption

5V/80mA

Signal-to-Noise Ratio

80dB

Maximum SPL

120dB

Microphone's Gain Control

0~54dB

Sampling Rate

48 kHz

Bit Depth

24 bit

Headphone Output Connector

1/8"(3.5mm) jack

Audio Output Connector

USB-C, 5-Pin XLR

Dimensions

295×112×116 mm

Weight

1115g

Packing List

BY-PM700 Pro Microphone*1

USB-A to USB-C Cable (3m)*1

USB-C to USB-C Cable (2m)*1

5-Pin XLR Female to Dual 3-Pin XLR Male Y-Cable (0.5m)*1

View All

Specification

Polar Pattern

Stereo, Omnidirectional, Cardioid, Bidirectional

Frequency Response

20-20,000Hz

Sensitivity

-36dB

Power Consumption

5V/80mA

Signal-to-Noise Ratio

80dB

Maximum SPL

120dB

Microphone's Gain Control

0~54dB

Sampling Rate

48 kHz

Bit Depth

24 bit

Headphone Output Connector

1/8"(3.5mm) jack

Audio Output Connector

USB-C, 5-Pin XLR

Dimensions

295×112×116 mm

Weight

1115g

Packing List

BY-PM700 Pro Microphone*1

USB-A to USB-C Cable (3m)*1

USB-C to USB-C Cable (2m)*1

5-Pin XLR Female to Dual 3-Pin XLR Male Y-Cable (0.5m)*1

Put it all away

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

boya pm700 pro usb microphone

Put it all away

User Manual - BY-PM700 Pro
