- Ultracompact & portable - Up to 60m wireless operation range - Easy-to-use clip-on TX transmitter/ RX receiver - Compatible with smartphones, tablets, cameras, camcorders, etc - Built-in mic for high-quality sound - ldeal for 2-person interviews, podcasts & live streaming - Selectable mono/stereo output

Product Introduction

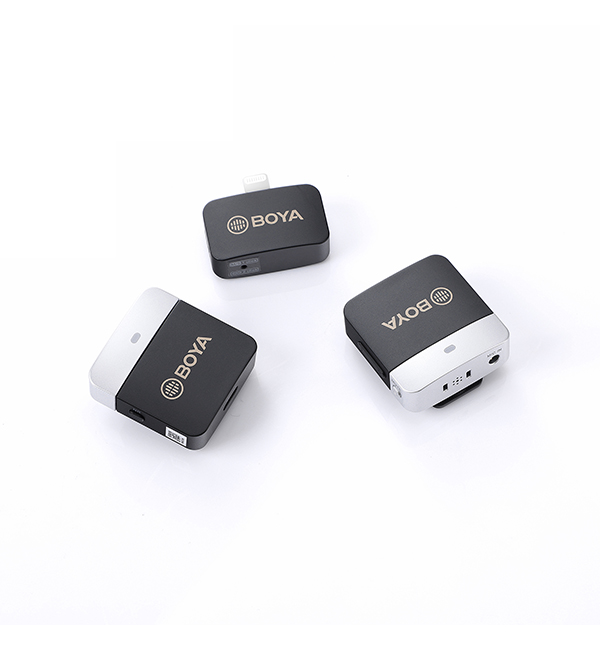

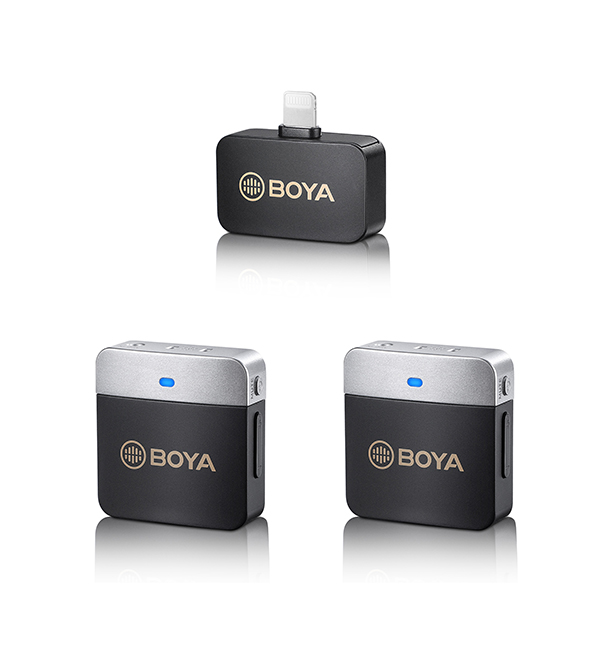

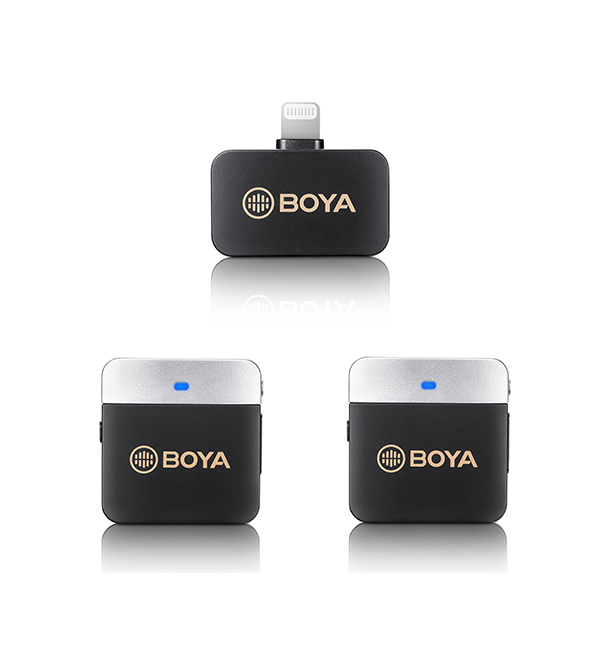

The BY-M1V series is a lightweight also user-friendly wireless microphone system that delivers exceptional sound quality to a range of devices including smartphones, tablets, DSLR cameras, or camcorders. It's perfect for live streaming, content creation, or mobile journalism. The BY-M1V6, featuring a RXD port also dual-channel wireless microphone system, is compatible with Apple iOS devices.

See more Pack up
BY-M1V6
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone
boya m1v wireless microphone

Product Parameters

BY-M1V-TX
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
RF Output Power
<10mW
Audio Input
3.5mm Jack or Built-in Omnidirectional Mic
Frequency Response
50Hz-20kHz
Signal-to-Noise Ratio
>75dB
Maximum SPL
Built-in Microphone: 120dB SPL
Sensitivity
Built-in Microphone:-39dB±2dB (0dB=1V/Pa@1kHz)
Noise Cancellation
Yes
Power Requirement
Built-in Li-ion Battery or USB-C DC 5V
Antenna
PIFA Antenna
Battery Life
Approx.6 hours
Weight
18g
Dimensions
40.2×39.4×18.6mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃
BY-M1V-RXD
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
Audio Output
MFi Certified Lightning Connector
Power Requirement
Supplied by iOS Devices
Antenna
PIFA Antenna
Weight
10g
Dimensions
23.5×38×11.9mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃

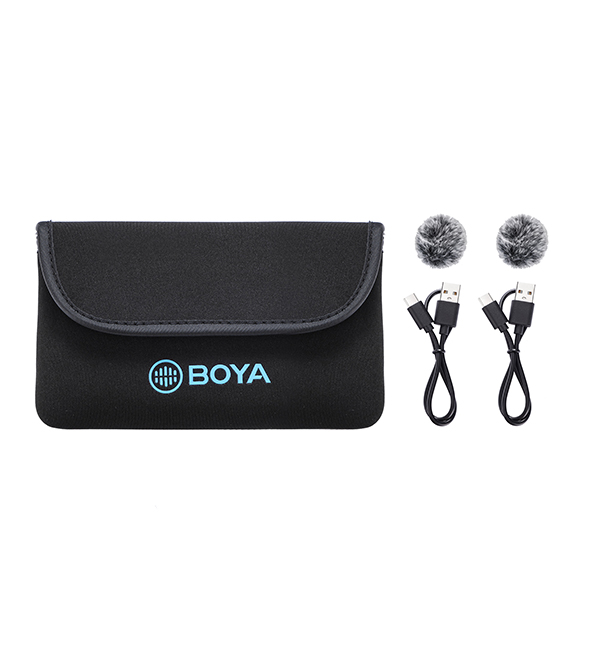

Packing List
BY-M1V-TX Transmitter×2
BY-M1V-RXD Receiver×1
USB-C Charging Cable×2
Fur Windshield×2
Pairing Pin×1
BY-M1V-TX
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
RF Output Power
<10mW
Audio Input
3.5mm Jack or Built-in Omnidirectional Mic
Frequency Response
50Hz-20kHz
Signal-to-Noise Ratio
>75dB
Maximum SPL
Built-in Microphone: 120dB SPL
Sensitivity
Built-in Microphone:-39dB±2dB (0dB=1V/Pa@1kHz)
Noise Cancellation
Yes
Power Requirement
Built-in Li-ion Battery or USB-C DC 5V
Antenna
PIFA Antenna
Battery Life
Approx.6 hours
Weight
18g
Dimensions
40.2×39.4×18.6mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃
BY-M1V-RXD
Transmission Type
2.4GHz ISM
Modulation
GFSK
Operating Range
>60m (without obstacles)
Audio Output
MFi Certified Lightning Connector
Power Requirement
Supplied by iOS Devices
Antenna
PIFA Antenna
Weight
10g
Dimensions
23.5×38×11.9mm
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 55℃
Packing List
BY-M1V-TX Transmitter×2
BY-M1V-RXD Receiver×1
USB-C Charging Cable×2
Fur Windshield×2
Pairing Pin×1
