Home Product Presentation BY-WM3T-M2

• 2.4GHz dual-channel wireless microphone system
• Ultracompact and portable
• Compatible with cameras and devices with 3.5mm Jack
• Omnidirection built-in mic for 360° sound pickup
• Selectable noise cancellation
• Automatic pairing & plug and play
• TX's built-in rechargeable battery provides up to 10-hour run time
• 50m operating range

Product Introduction

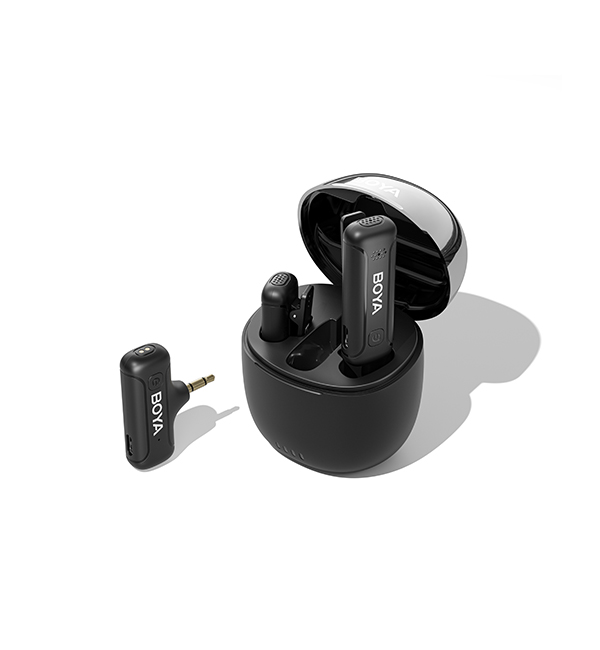

The BY-WM3T-M2 is is an ultra-compact 2.4GHz wireless microphone system, perfect for content creation, livestreaming, vlogging, and beyond. It includes two transmitters and one 3.5mm TRS receiver, ensuring compatibility with DSLRs, mirrorless cameras, smartphones, and computers through a 3.5mm TRS jack.

See more

Overview

Parameter

Download

View All

Put it all away

Transmitter & Receiver

Transmission Type

2.4GHz digital frequency

Modulation

GFSK

Polar Pattern

Omnidirectional

Antenna

Ceramic antenna

Operating Range

Up to 100m (without obstacle)

RF Output Power

10dBm

Distortion

≤0.1%

Frequency Response

20Hz-20kHz

sensitivity

-40dB±2 (1V/Pa)

Sampling Rate

48kHz

Bit Rate

16bit

Signal-to-Noise Ratio

85dB

Audio lnput

Built-in microphone capsule

Audio Output

RX35:3.5mm TRS analog output

Power Requirements

TX / RX35: Built-in lithium-ionbattery/ Charging contacts/ USB-C charging port

Battery Capacity of TX / RX35

TX: Approx. 10 hours / RX35:Approx. 5.5 hours

Charging Time of TX / RX35

Approx. 2 hours

Weight

Tx:9.5g; RX35: 10g

Dimensions

TX：53.0*18.4*16.8mm / RX35:47.4*38.9*11.6mm

Operating Temperature

0℃ to +50℃

storage Temperature

-10℃ to +50℃

Charging Case

Battery Capacity

600mAh

Charging Time

Approx.2 hours

Charging Connector

USB-C port

Times for Charging Microphone

2 times (2*TX)

Weight

74.5g

Dimensions

65.8*52.8*72mm

Operating Temperature

0℃ to +50℃

Storage Temperature

-10℃ to +50℃

Packing List

BY-WM3T-TX Transmitter *2

BY-WM3T-RX35 Receiver *1

BY-WM3T-CC Charging Case *1

USB-C Charging Cable *1

Foam Windscreen *2

Carrying *1

View All

Transmitter & Receiver

Transmission Type

2.4GHz digital frequency

Modulation

GFSK

Polar Pattern

Omnidirectional

Antenna

Ceramic antenna

Operating Range

Up to 100m (without obstacle)

RF Output Power

10dBm

Distortion

≤0.1%

Frequency Response

20Hz-20kHz

sensitivity

-40dB±2 (1V/Pa)

Sampling Rate

48kHz

Bit Rate

16bit

Signal-to-Noise Ratio

85dB

Audio lnput

Built-in microphone capsule

Audio Output

RX35:3.5mm TRS analog output

Power Requirements

TX / RX35: Built-in lithium-ionbattery/ Charging contacts/ USB-C charging port

Battery Capacity of TX / RX35

TX: Approx. 10 hours / RX35:Approx. 5.5 hours

Charging Time of TX / RX35

Approx. 2 hours

Weight

Tx:9.5g; RX35: 10g

Dimensions

TX：53.0*18.4*16.8mm / RX35:47.4*38.9*11.6mm

Operating Temperature

0℃ to +50℃

storage Temperature

-10℃ to +50℃

Charging Case

Battery Capacity

600mAh

Charging Time

Approx.2 hours

Charging Connector

USB-C port

Times for Charging Microphone

2 times (2*TX)

Weight

74.5g

Dimensions

65.8*52.8*72mm

Operating Temperature

0℃ to +50℃

Storage Temperature

-10℃ to +50℃

Packing List

BY-WM3T-TX Transmitter *2

BY-WM3T-RX35 Receiver *1

BY-WM3T-CC Charging Case *1

USB-C Charging Cable *1

Foam Windscreen *2

Carrying *1

Put it all away

User Manual - BY-WM3T

Download
